Infra Red Elevator Door Detector THY-LC-917
| Lebitso la Sehlahiswa | Lesira le khanyang la lifti |
| Tsela e bulehileng | Lehlakore le butsoe kapa le bulehile bohareng |
| Palo ea li-volts | AC220V, AC110V,DC24V |
| Nomoro ea Diode | 17, 32 |
| Palo ea Mabala | 94-33 maballo, 154-94 maballo |
1. Ka mosebetsi oa ho itlhahloba, Lebokose la Matla le hlahisoang ka tloaelo le tlhahiso ea ho itlhahloba
2. E fetisitse liteko tsa TUV ea Jeremane, 'me e lumellane le litekanyetso tsa machaba tse amanang
3. Mosebetsi oa ho robala, lelefatsa bophelo ba ho sebetsa ba sehlahisoa
4. Amohela thekenoloji e ncha, PCB e nang le bokhoni bo matla ba ho hanyetsa kutu, le bokhoni bo matla ba ho ikamahanya le maemo, bo tsitsitseng le bo ka tšeptjoang.
5. Moralo o motle oa ponahalo, ho kenya habonolo, ho loketse li-elevator tse ngata tsa brand
6. Mekhoa e tsoetseng pele ea theknoloji le lisebelisoa, mekhoa e tšepahalang ea SMT holim'a padding
7. Ho ikhethela hore basebelisi ba khethe tlhahiso ea NPN/PNP ( Transistor output) ntle le lebokose la phepelo ea motlakase
Lesira la lebone la lifti ke sesebelisoa sa ts'ireletso ea lemati la lifti se entsoeng ho sebelisoa molao-motheo oa ho kenella ha photoelectric. E loketse li-elevator tsohle mme e sireletsa polokeho ea bapalami ba kenang le ho tsoa ka lifti. Lesira la lebone la lifti le entsoe ka likarolo tse tharo: li-transmitters le li-receiver tse kentsoeng mahlakoreng ka bobeli a monyako oa koloi ea lifti, le likhoele tse khethehileng tse tenyetsehang. Bakeng sa litlhoko tsa ts'ireletso ea tikoloho le ho boloka matla, li-elevator tse ngata li siile lebokose la matla. Mefuta e meng ea likharetene tse bobebe e tlameha ho sebelisa mabokose a motlakase ka lebaka la ts'ireletso e fokolang ea bona ho tšitiso ea motlakase. Leha ho le joalo, ka ho ata ha mohopolo oa li-elevator tse tala, likharetene tse bobebe ntle le mabokose a phepelo ea motlakase ke mokhoa. Hobane mokhoa oa ho fetola 220V ho 24V o tlameha ho lahleheloa ke matla a mangata.
Lesira la lebone la THY-LC-917 le na le tšupu e laoloang ke CPU e matla ea ho hlahloba lebone la LED khareteneng e tloaelehileng ea lebone. LED ea mebala e 'meli e nang le lihlopha e bonts'a boemo ba sebaka sa tšireletso ea likharetene tse khanyang, e le hore lesira le khanyang le be le phello e bonahalang haholoanyane mosebetsing o tloaelehileng oa tšireletso. Ea botho haholoanyane.
Ho na le li-tubes tse 'maloa tse emitting tsa infrared qetellong ea lesira la leseli. Tlas'a taolo ea MCU, li-tubes tse ntšang le tse amohelang li buloa ka tatellano, 'me leseli le hlahisoang ke hlooho e le' ngoe e ntšang le amoheloa ke lihlooho tse ngata tse amohelang ho theha mochine oa mechine e mengata. Ka ho hlahlobisisa hona ho sa khaotseng ha sebaka sa lemati la koloi ho tloha holimo ho ea tlase, ho theoa kharetene e teteaneng ea tšireletso ea infrared. Ha le leng la mahlaseli le koetsoe, kaha phetoho ea photoelectric ha e khonehe, lesira le ahlola hore ho na le tšitiso, kahoo le hlahisa lets'oao le sitisang. Letšoao lena le sitisang e ka ba lets'oao la switch kapa lets'oao le phahameng le le tlase. Ka mor'a hore tsamaiso ea taolo e fumane letšoao ho tloha lesira le khanyang, hang-hang e hlahisa letšoao la ho bula lemati, 'me lemati la koloi le emisa ho koala le ho bula ka morao. Lemati la lift le ka koaloa ka tloaelo ka mor'a hore bapalami kapa litšitiso li tlohe sebakeng sa temoso, e le ho finyella sepheo sa tšireletso. Qoba likotsi tsa batho ba ts'oaretsoeng lifing.
1. Ho kenngoa ha mohala oa transmitter le moamoheli
Ho kengoa ha kharetene e tsamaeang ka mohala ho bolela ho kenya le ho sebelisoa ha mochini o fetisang leseli, moamoheli, kapa e 'ngoe ea eona e kentsoeng monyako oa koloi ebe e tsamaea le lemati la koloi. Tlas'a maemo a tloaelehileng, transmitter le receiver li tsitsitse moeling o phuthoang oa lemati la koloi.
Mokhoa oa ho kenya lemati le ka lehlakoreng ke ho lokisa lesira le khanyang holim'a koloi ea lifti le moeli o menoang oa lemati la koloi ka li-screws.
Mokhoa oa ho kenya monyako o arohaneng oa bohareng ke ho lokisa lesira le khanyang moeling o phuthoang oa lemati la koloi ea lifti ka li-screws.

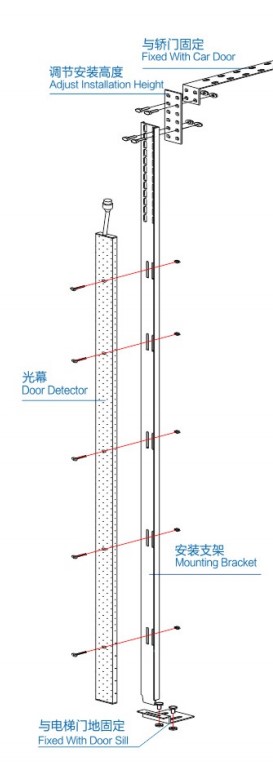

2. Ho kengoa ho tsitsitseng ha transmitter le moamoheli
Ho kenngoa ho tsitsitseng ha lesira la lebone ho bolela ho kenya le ho sebelisoa ha mochine o fetisang le ho amohela likharetene tse tsitsitseng qetellong ea sill ea lemati la koloi ka har'a bracket e tsitsitseng. Transmitter le receiver ha li khone ho tsamaea le lemati la koloi.
